BBB INDUSTRIES
1020248

第三方数据BBB INDUSTRIES : 1020248

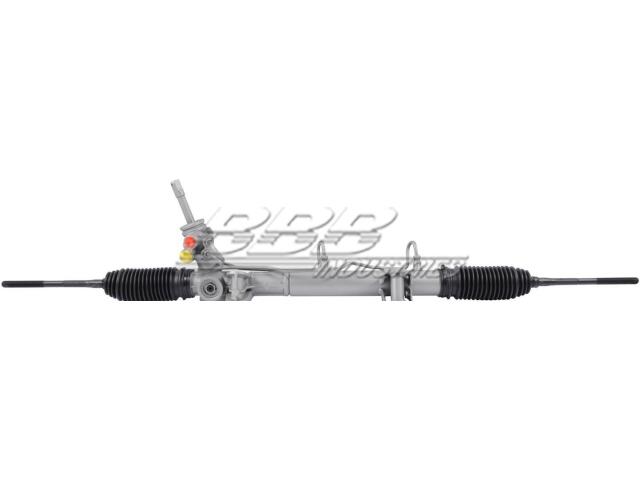

Rack and Pinion
BBB INDUSTRIES : 1020248

Bushings Included: No
Distance Between Mounting Holes (IN): 11.375
Distance Between Mounting Holes (MM): 288.925
Hydraulic, Electric, or Manual Steering: Hydraulic
Inner Tie Rods Included: Yes
Input Shaft Diameter (IN): 0.696
Input Shaft Diameter (MM): 17.678
Input Shaft Length (IN): 3.313
Input Shaft Length (MM): 84.138
Mounting Hole Quantity: 2
New Or Remanufactured: Remanufactured
Outer Tie Rods Included: No
Pressure Port Thread Size: 16mmX1.5
Rack Length (IN): 47.75
Rack Length (MM): 1212.85
Return Port Thread Size: 18mmX1.5
Total Turns Lock To Lock: 2.94

适用车型

DODGE (1)

OE号码

品牌	号码
OE	102-024*
