BBB INDUSTRIES
1030247

第三方数据BBB INDUSTRIES : 1030247

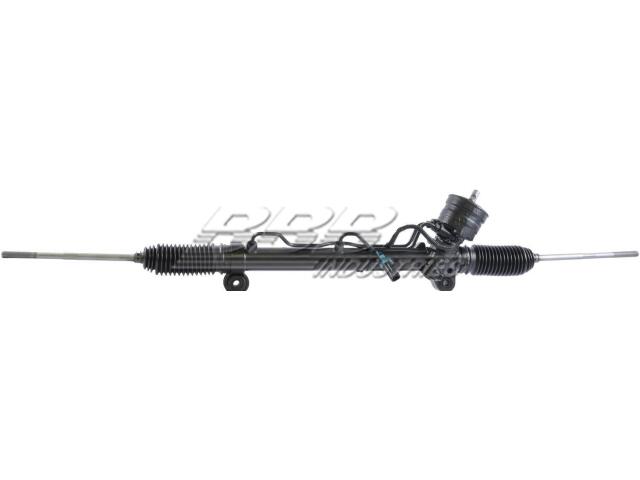

Rack and Pinion
BBB INDUSTRIES : 1030247

Bushings Included: Yes
Distance Between Mounting Holes (IN): 16.75
Distance Between Mounting Holes (MM): 425.45
Hydraulic, Electric, or Manual Steering: Hydraulic
Inner Tie Rods Included: Yes
Input Shaft Diameter (IN): 0.75
Input Shaft Diameter (MM): 19.05
Input Shaft Length (IN): 1.125
Input Shaft Length (MM): 28.575
Mounting Hole Quantity: 2
New Or Remanufactured: Remanufactured
Outer Tie Rods Included: No
Pressure Port Thread Size: M16x1.50
Rack Length (IN): 50.75
Rack Length (MM): 1289.05
Return Port Thread Size: M16x1.50
Total Turns Lock To Lock: 2.188

适用车型

BUICK (1)

CADILLAC (1)

OE号码

品牌	号码
OE	103-024*

品牌	号码
OE	1932054*

品牌	号码
OE	95473*
