REIN
CHR0349R

第三方数据REIN : CHR0349R

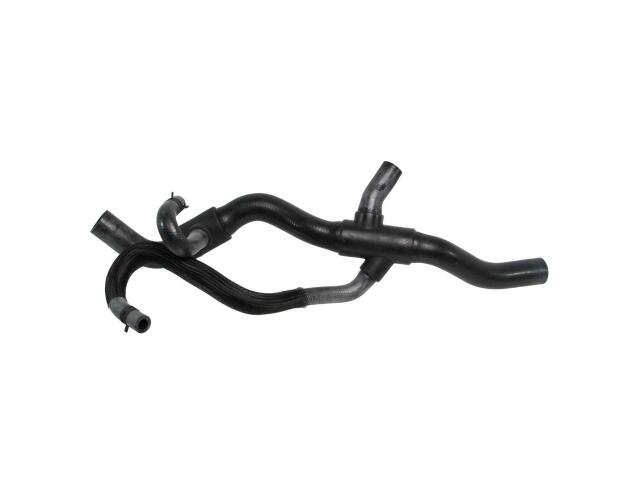

Radiator Hose
REIN : CHR0349R

Centerline Length (Inches): 25.0000
Centerline Length (Metric): 63.5000000
Color: Black
Heat Shield Included: Yes
Hose End 1 Inside Diameter (Inches): 1.2200
Hose End 1 Inside Diameter (Metric): 3.0988000
Hose End 1 Outside Diameter (Inches): 1.5400
Hose End 1 Outside Diameter (Metric): 3.9116000
Hose End 2 Inside Diameter (Inches): 0.5900
Hose End 2 Inside Diameter (Metric): 1.4986000
Hose End 2 Outside Diameter (Inches): 0.8700
Hose End 2 Outside Diameter (Metric): 2.2098000
Hose End 3 Inside Diameter (Inches): 0.8700
Hose End 3 Inside Diameter (Metric): 2.2098000
Hose End 3 Outside Diameter (Inches): 1.1000
Hose End 3 Outside Diameter (Metric): 2.7940000
Hose End 4 Inside Diameter (Inches): 1.2200
Hose End 4 Inside Diameter (Metric): 3.0988000
Hose End 4 Outside Diameter (Inches): 1.5400
Hose End 4 Outside Diameter (Metric): 3.9116000
Hose End 5 Inside Diameter (Inches): 0.5900
Hose End 5 Inside Diameter (Metric): 1.4986000
Hose End 5 Outside Diameter (Inches): 0.8700
Hose End 5 Outside Diameter (Metric): 2.2098000
Hose Material: EPDM
Hose Type: Branched
Installation Hardware Included: No
Maximum Working Pressure: 140.0000
Protective Shield Included: No
Qty of Branches: 3

适用车型

VOLVO (4)

C30 (2)

S40 (2)

V50 (2)

C70 (1)

OE号码

品牌	号码
OE	3065075*

品牌	号码
OE	3072308*
