ASTRA
18A2930

第三方数据ASTRA : 18A2930

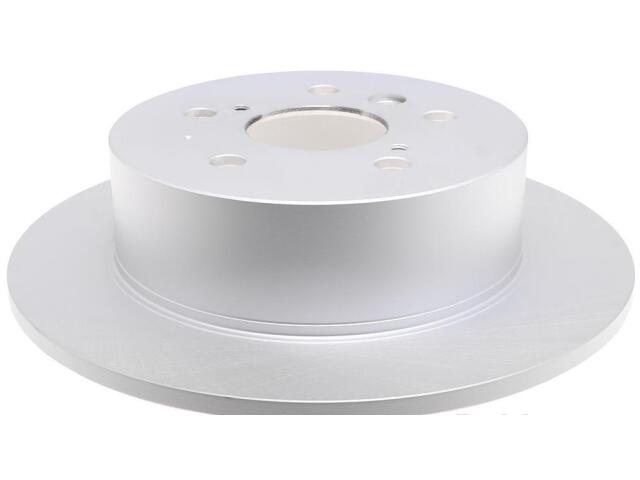

Rotor
ASTRA : 18A2930

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.4in
Center Bore Diameter (MM): 62mm
Center Hole Diameter (IN): 2.44
Center Hole Diameter (MM): 62
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: No
Disc Finish: Coated
Discard Thickness (IN): 0.335
Discard Thickness (MM): 8.5
Hat Finish: Turned
Height (IN): 2.6
Height (MM): 66.9
Inside Diameter (IN): 7.579
Inside Diameter (MM): 192.5
Length (IN): 12.12
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.573
Mounting Bolt Hole Diameter (MM): 14.55
Nominal Thickness (IN): 0.364
Nominal Thickness (MM): 9.25
Outside Diameter (IN): 11.059
Outside Diameter (MM): 280.9
Overall Height (IN): 2.63
Overall Height (MM): 66.8
Overall Rotor Diameter (mm): 280.92mm
Pad Contact Surface Width (IN): 1.7
Pad Contact Surface Width (MM): 44.2
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth
Weight (lb): 10.7
Width (IN): 12.12

适用车型

LEXUS (2)

TOYOTA (2)

CAMRY (3)

AVALON (2)

OE号码

品牌	号码
OE	1930679*
