ASTRA
18A2940

第三方数据ASTRA : 18A2940

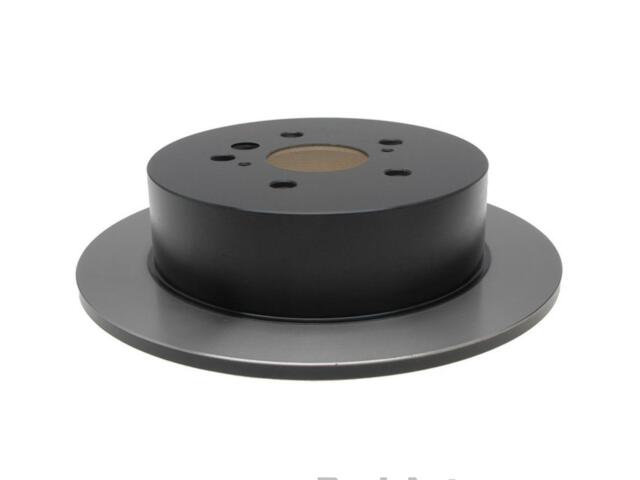

Rotor
ASTRA : 18A2940

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.4in
Center Bore Diameter (MM): 62mm
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 0.35
Discard Thickness (MM): 8.9
Hat Finish: Turned
Height (IN): 2.7
Height (MM): 69.6
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.566
Mounting Bolt Hole Diameter (MM): 14.4
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 9.9
Outside Diameter (IN): 11.7
Outside Diameter (MM): 297.8
Overall Rotor Diameter (mm): 297.94mm
Pad Contact Surface Width (IN): 1.7
Pad Contact Surface Width (MM): 43.55
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

TOYOTA (1)

OE号码

品牌	号码
OE	1930702*
