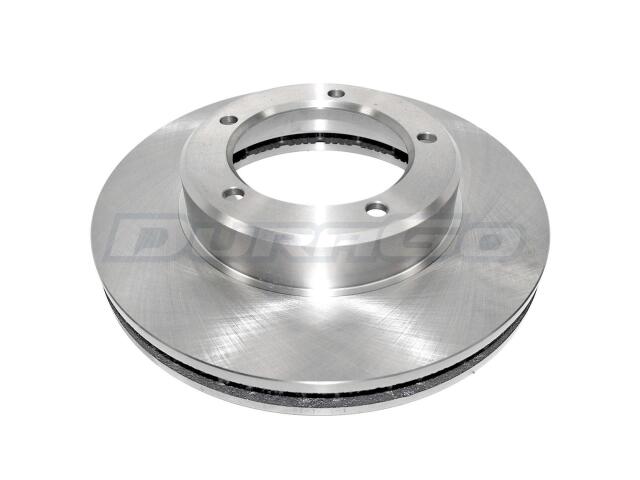

Rotor
AUTO EXTRA : AX31265

Abs Tone Ring Included: No
Center Hole Diameter (IN): 4.53
Center Hole Diameter (MM): 115.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.18
Discard Thickness (MM): 30
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.67
Mounting Bolt Hole Circle Diameter (MM): 144
Mounting Bolt Hole Diameter (IN): 0.5
Mounting Bolt Hole Diameter (MM): 12.7
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.26
Nominal Thickness (MM): 32.1
Outside Diameter (IN): 12.32
Outside Diameter (MM): 313
Overall Height (IN): 2.76
Overall Height (MM): 70
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

LEXUS (1)

TOYOTA (1)

OE号码

品牌	号码
OE	AX31265:*
