AX31269P

第三方数据AUTO EXTRA : AX31269P

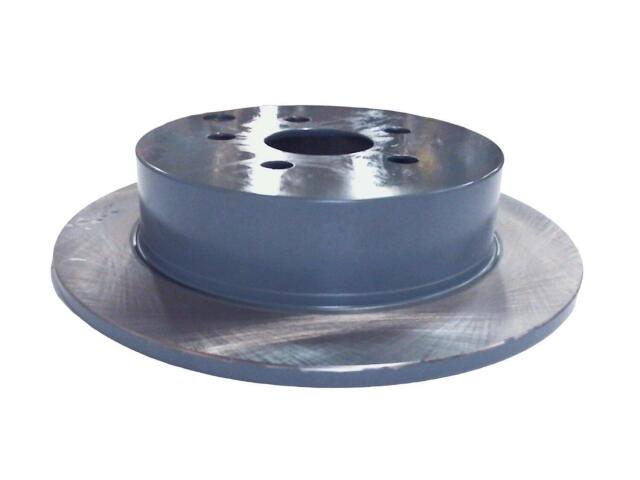

Rotor
AUTO EXTRA : AX31269P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.17
Center Hole Diameter (MM): 55
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.3
Discard Thickness (MM): 7.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100
Mounting Bolt Hole Diameter (IN): 0.58
Mounting Bolt Hole Diameter (MM): 14.7
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.35
Nominal Thickness (MM): 9
Outside Diameter (IN): 10.59
Outside Diameter (MM): 269
Overall Height (IN): 2.2
Overall Height (MM): 55.9
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

TOYOTA (3)

PONTIAC (1)

SCION (1)

OE号码

品牌	号码
OE	AX31269P:*
