AUTO EXTRA
AX31326

第三方数据AUTO EXTRA : AX31326

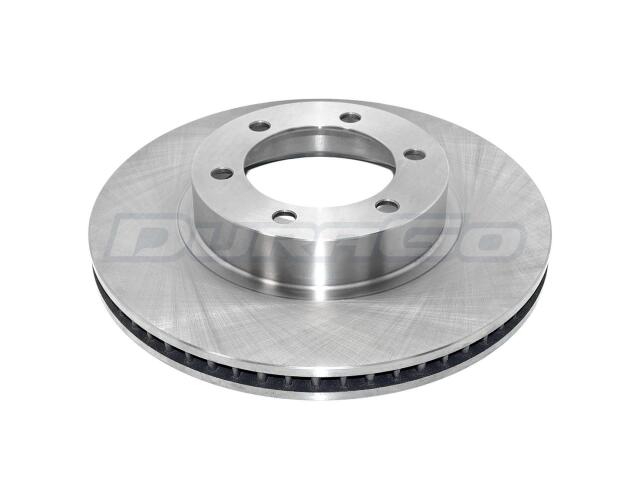

Rotor
AUTO EXTRA : AX31326

Abs Tone Ring Included: No
Center Hole Diameter (IN): 4.26
Center Hole Diameter (MM): 108.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.02
Discard Thickness (MM): 26
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.5
Mounting Bolt Hole Circle Diameter (MM): 139.7
Mounting Bolt Hole Diameter (IN): 0.57
Mounting Bolt Hole Diameter (MM): 14.5
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 1.1
Nominal Thickness (MM): 28
Outside Diameter (IN): 13.31
Outside Diameter (MM): 338
Overall Height (IN): 2.66
Overall Height (MM): 67.5
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

LEXUS (1)

TOYOTA (1)
