AUTO EXTRA
AX900488

第三方数据AUTO EXTRA : AX900488

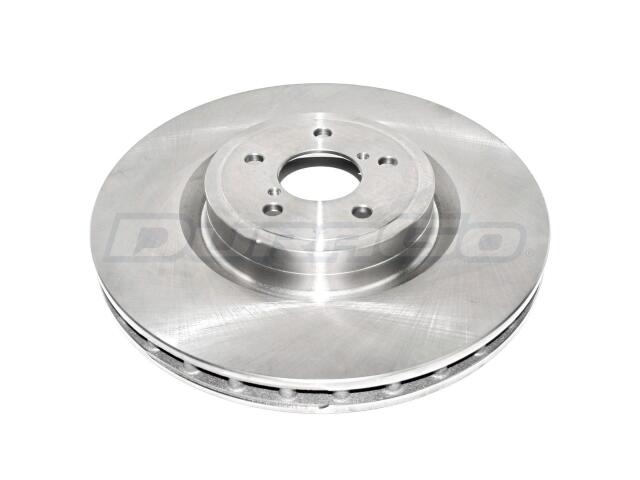

Rotor
AUTO EXTRA : AX900488

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.28
Center Hole Diameter (MM): 58
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.1
Discard Thickness (MM): 28
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100
Mounting Bolt Hole Diameter (IN): 0.5
Mounting Bolt Hole Diameter (MM): 12.8
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.18
Nominal Thickness (MM): 30
Outside Diameter (IN): 12.83
Outside Diameter (MM): 326
Overall Height (IN): 2.09
Overall Height (MM): 53
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

TOYOTA (1)

OE号码

品牌	号码
OE	AX900488:*
