AUTO EXTRA
AX900572

第三方数据AUTO EXTRA : AX900572

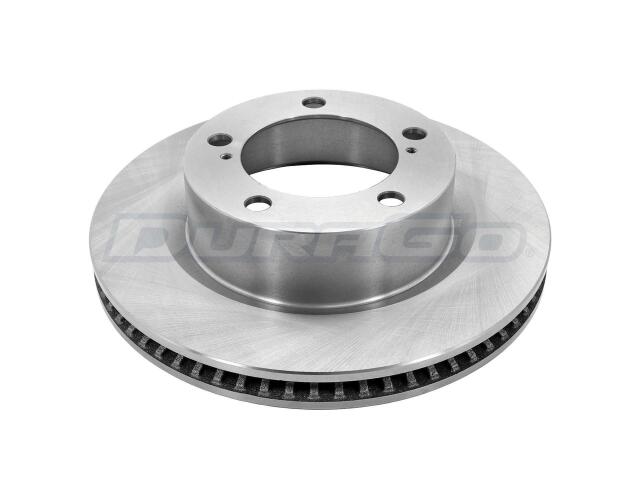

Rotor
AUTO EXTRA : AX900572

Abs Tone Ring Included: No
Center Hole Diameter (IN): 4.41
Center Hole Diameter (MM): 112
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.14
Discard Thickness (MM): 29
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.91
Mounting Bolt Hole Circle Diameter (MM): 150
Mounting Bolt Hole Diameter (IN): 0.65
Mounting Bolt Hole Diameter (MM): 16.6
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.26
Nominal Thickness (MM): 32
Outside Diameter (IN): 13.39
Outside Diameter (MM): 340
Overall Height (IN): 3.28
Overall Height (MM): 83.3
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

LEXUS (1)

TOYOTA (1)

OE号码

品牌	号码
OE	AX900572:*
