AUTO EXTRA
AX900758

第三方数据AUTO EXTRA : AX900758

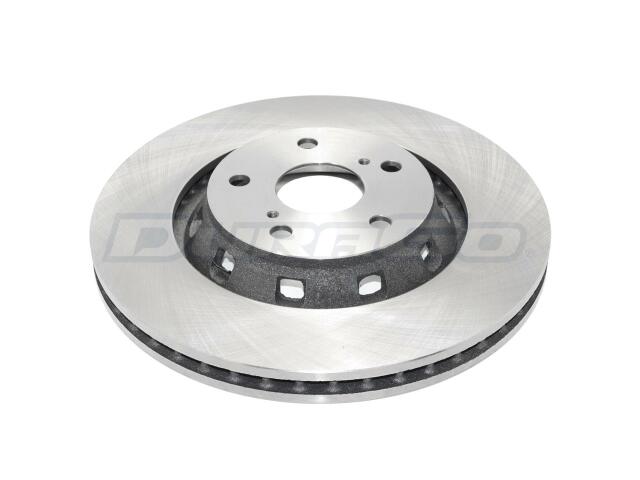

Rotor
AUTO EXTRA : AX900758

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.44
Center Hole Diameter (MM): 62
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.02
Discard Thickness (MM): 26
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.57
Mounting Bolt Hole Diameter (MM): 14.5
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.1
Nominal Thickness (MM): 28
Outside Diameter (IN): 12.76
Outside Diameter (MM): 324
Overall Height (IN): 1.94
Overall Height (MM): 49.2
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

TOYOTA (1)

OE号码

品牌	号码
OE	AX900758:*
