AUTO EXTRA
AX900908

第三方数据AUTO EXTRA : AX900908

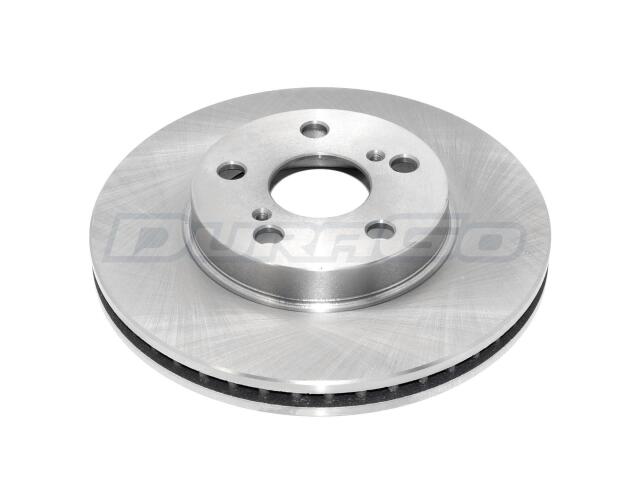

Rotor
AUTO EXTRA : AX900908

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.17
Center Hole Diameter (MM): 55
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.87
Discard Thickness (MM): 22
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100
Mounting Bolt Hole Diameter (IN): 0.57
Mounting Bolt Hole Diameter (MM): 14.5
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.98
Nominal Thickness (MM): 25
Outside Diameter (IN): 10.04
Outside Diameter (MM): 255
Overall Height (IN): 1.93
Overall Height (MM): 49
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

LEXUS (1)

TOYOTA (2)
