第三方数据BOSCH : 26011550

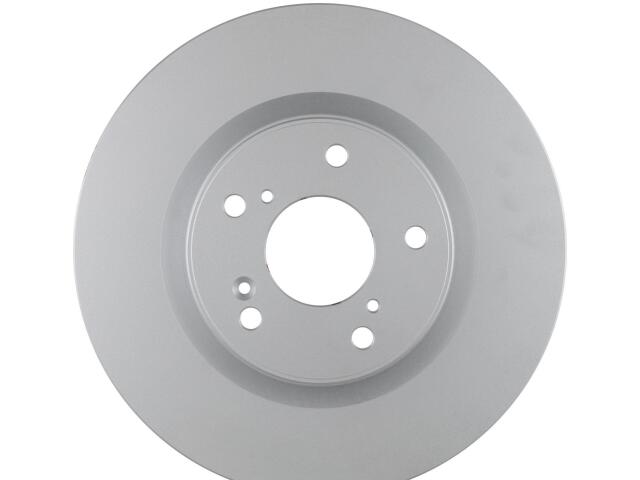

Rotor
BOSCH : 26011550

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 64.15 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 23 mm
Mounting Bolt Hole Circle Diameter: 114.3 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 25 mm
Outside Diameter: 300 mm
Overall Height: 47.2 mm
Product Height: 1.858268 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 25 mm

适用车型

HONDA (1)

参考号

厂商	号码
BRAKE PRO OVERSTOCK	BP3164*
RAYBESTOS UNBRANDED	98104*

厂商	号码
RAYBESTOS UNBRANDED	981040FZ*

厂商	号码
RAYBESTOS UNBRANDED	981040*

OE号码

品牌	号码
OE	45251T0HA0*
