BOSCH
50011223

第三方数据BOSCH : 50011223

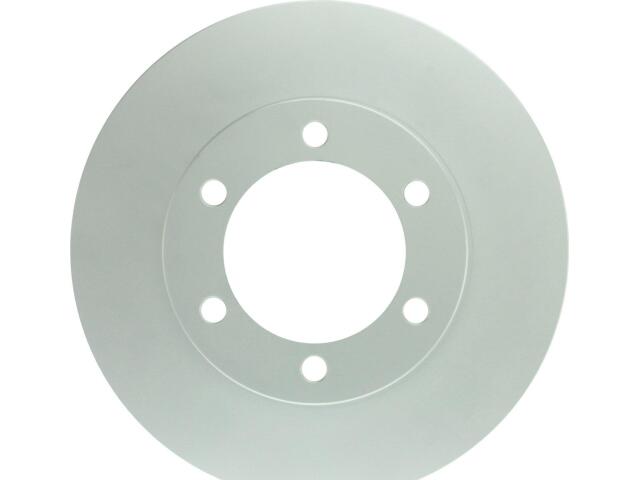

Rotor
BOSCH : 50011223

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 108 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 26 mm
Mounting Bolt Hole Circle Diameter: 139.7 mm
Mounting Bolt Hole Quantity: 6
Nominal Thickness: 28 mm
Outside Diameter: 318.7 mm
Overall Height: 70.2 MM
Product Height: 2.76378 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 28 mm

适用车型

TOYOTA (2)

参考号

厂商	号码
WORLDPAC	N1000-173572-BO*

OE号码

品牌	号码
OE	435120C01*
