BOSCH
50011246

第三方数据BOSCH : 50011246

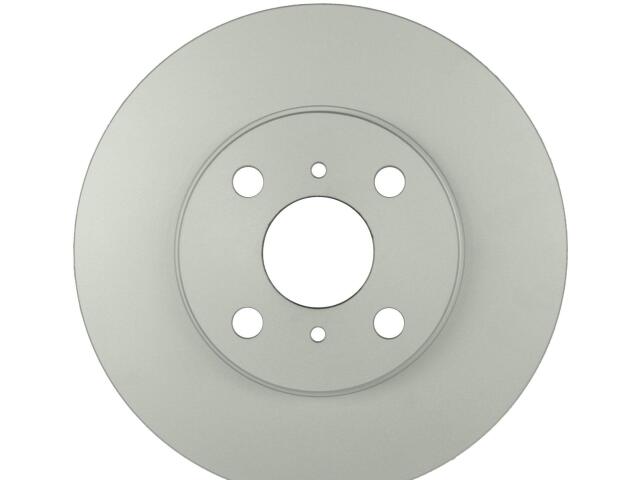

Rotor
BOSCH : 50011246

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 55.1 MM
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 18 mm
Mounting Bolt Hole Circle Diameter: 100 mm
Mounting Bolt Hole Quantity: 4
Nominal Thickness: 20 mm
Outside Diameter: 254.9 mm
Overall Height: 43 mm
Product Height: 1.692913 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 20 mm

适用车型

TOYOTA (2)

参考号

厂商	号码
DFC	1311-0717-0*

厂商	号码
WORLDPAC	N1000-167961-BO*

OE号码

品牌	号码
OE	435125209*
