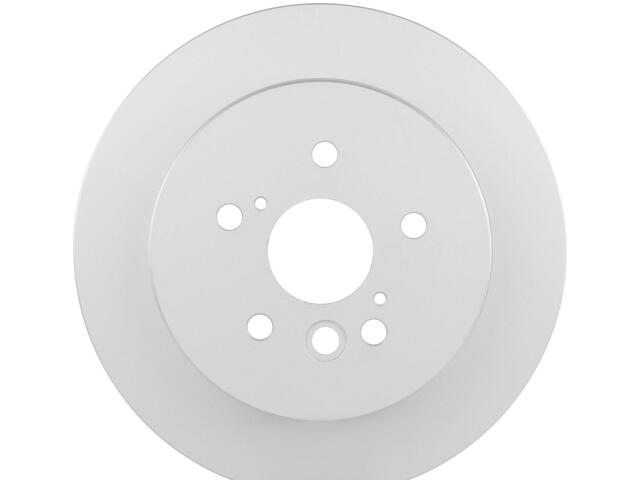

Rotor
BOSCH : 50011284

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 62 mm
Construction: Solid
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 8 mm
Mounting Bolt Hole Circle Diameter: 114.3 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 9.1 mm
Outside Diameter: 303 mm
Overall Height: 62.2 mm
Product Height: 2.448819 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 9.1 mm

适用车型

TOYOTA (1)

参考号

厂商	号码
WORLDPAC	N1000-322186-BO*

OE号码

品牌	号码
OE	424314204*
