08A35511

第三方数据BREMBO : 08A35511

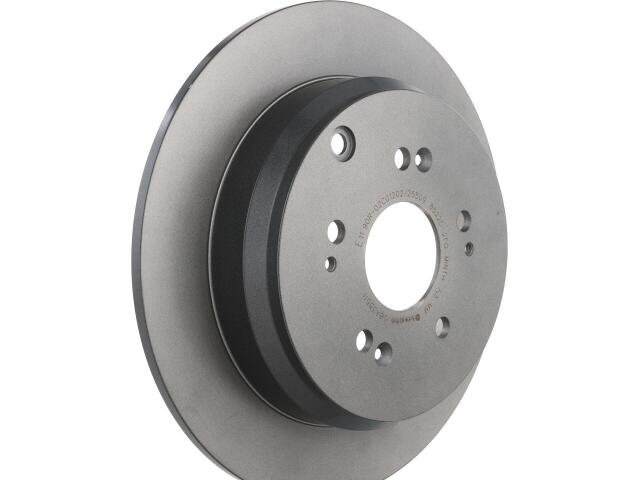

Rotor
BREMBO : 08A35511

Center Hole Diameter (MM): 64.20
Fixing Screws: Included
Material: Grey Cast Iron
Minimum Thickness (MM): 7.5
Nominal Thickness (MM): 90.00
Number of Holes: 5
Outside Diameter (MM): 305.00
Overall Height (MM): 612.00
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Solid
Torque Spec(NM): 108

适用车型

HONDA (1)

CR-V (1)

2.4L L4 (12)

2005	PRIME; Solid Rear; EX Model or LX Model or SE Model 42510S9AE50, 42510SCAE50, 42510STKA00, 42510SWA000, 42510SWAA00, 42510SWAA01, 42510SWAA02, 42510SXSA00, 42510T0AA00, 42510T0GA02, 42510T0GA04, 42510TX4A01, 42510TX4A02

2006	PRIME; Solid Rear; EX Model or LX Model or SE Model 42510S9AE50, 42510SCAE50, 42510STKA00, 42510SWA000, 42510SWAA00, 42510SWAA01, 42510SWAA02, 42510SXSA00, 42510T0AA00, 42510T0GA02, 42510T0GA04, 42510TX4A01, 42510TX4A02

2007	PRIME; Solid Rear 42510S9AE50, 42510SCAE50, 42510STKA00, 42510SWA000, 42510SWAA00, 42510SWAA01, 42510SWAA02, 42510SXSA00, 42510T0AA00, 42510T0GA02, 42510T0GA04, 42510TX4A01, 42510TX4A02

2008	PRIME; Solid Rear 42510S9AE50, 42510SCAE50, 42510STKA00, 42510SWA000, 42510SWAA00, 42510SWAA01, 42510SWAA02, 42510SXSA00, 42510T0AA00, 42510T0GA02, 42510T0GA04, 42510TX4A01, 42510TX4A02

2009	PRIME; Solid Rear 42510S9AE50, 42510SCAE50, 42510STKA00, 42510SWA000, 42510SWAA00, 42510SWAA01, 42510SWAA02, 42510SXSA00, 42510T0AA00, 42510T0GA02, 42510T0GA04, 42510TX4A01, 42510TX4A02

2010	PRIME; Solid Rear 42510S9AE50, 42510SCAE50, 42510STKA00, 42510SWA000, 42510SWAA00, 42510SWAA01, 42510SWAA02, 42510SXSA00, 42510T0AA00, 42510T0GA02, 42510T0GA04, 42510TX4A01, 42510TX4A02

2011	PRIME; Solid Rear 42510S9AE50, 42510SCAE50, 42510STKA00, 42510SWA000, 42510SWAA00, 42510SWAA01, 42510SWAA02, 42510SXSA00, 42510T0AA00, 42510T0GA02, 42510T0GA04, 42510TX4A01, 42510TX4A02

2012	PRIME; Solid Rear; EX Model or EX-L Model or LX Model; Except Japan Built Vehicle 42510S9AE50, 42510SCAE50, 42510STKA00, 42510SWA000, 42510SWAA00, 42510SWAA01, 42510SWAA02, 42510SXSA00, 42510T0AA00, 42510T0GA02, 42510T0GA04, 42510TX4A01, 42510TX4A02

2013	PRIME; Solid Rear; EX Model or EX-L Model or LX Model 42510S9AE50, 42510SCAE50, 42510STKA00, 42510SWA000, 42510SWAA00, 42510SWAA01, 42510SWAA02, 42510SXSA00, 42510T0AA00, 42510T0GA02, 42510T0GA04, 42510TX4A01, 42510TX4A02

2014	PRIME; Solid Rear; EX Model or EX-L Model or LX Model 42510S9AE50, 42510SCAE50, 42510STKA00, 42510SWA000, 42510SWAA00, 42510SWAA01, 42510SWAA02, 42510SXSA00, 42510T0AA00, 42510T0GA02, 42510T0GA04, 42510TX4A01, 42510TX4A02

2015	PRIME; Solid Rear; EX Model or EX-L Model or LX Model or Touring 42510S9AE50, 42510SCAE50, 42510STKA00, 42510SWA000, 42510SWAA00, 42510SWAA01, 42510SWAA02, 42510SXSA00, 42510T0AA00, 42510T0GA02, 42510T0GA04, 42510TX4A01, 42510TX4A02

2016	PRIME; Solid Rear; EX Model or EX-L Model or LX Model or SE Model or Touring 42510S9AE50, 42510SCAE50, 42510STKA00, 42510SWA000, 42510SWAA00, 42510SWAA01, 42510SWAA02, 42510SXSA00, 42510T0AA00, 42510T0GA02, 42510T0GA04, 42510TX4A01, 42510TX4A02

ACURA (1)

RDX (2)

2.3L L4 Turbocharged (3)

3.5L V6 (6)

参考号

厂商	号码
ADVANCE/CARQUEST WEAREVER BRAKES	YH145678*
AIMCO	3137*
ALTROM	A942975B*
ATE (DELETED)	CW0915*
ATE/PREMIUMONE	CW0915*
BECK/ARNLEY	083-300*
BREMBO	2594*
BREMBO NORTH AMERICA	2594*
BREMBO NORTH AMERICA	08.A355.1*
CARQUEST PREMIUM COATED ROTORS	YH145678*
CENTRIC PARTS	320.4006*
DURAGO	BR90039*
HELLA-PAGID	35511890*

厂商	号码
HONDA	42510-S9A-E5*
HONDA	42510-STK-A0*
HONDA	42510-SCA-E5*
HONDA	42510-SXS-A0*
HONDA	42510-T0G-A0*
HONDA	42510-T0G-A0*
HONDA	42510SA9E5*
HONDA	42510SWA00*
HONDA	42510SWAA0*
HONDA	42510SWAA0*
HONDA	42510SWAA0*
FREIGHTLINER	08 A355 1*

厂商	号码
IMC MFG NUMBER CATALOG	08 A355 1*
IMC/PA	08 A355 1*
INTERAMERICAN MOTOR CORPORATION	08 A355 1*
METRIX PREMIUM CHASSIS PARTS	83888M*
RAYBESTOS	98029*
RAYBESTOS UNBRANDED	98029*
WAGNER BRAKE	BD12635*
WAGNER BRAKE CALIPERS (REMAN, NEW #'S)	BD12635*
WAGNER BRAKES MEXICO	BD12635*
WAGNER CALIPERS	BD12635*
WD EXPRESS	08 A355 1*
ZIMMERMAN	280.3185.2*

OE号码

品牌	号码
OE	08.A355.1*
HONDA	42510S9AE5*
HONDA	42510SCAE5*
ACURA (SEE HONDA)	42510STKA0*
HONDA	42510STKA0*
HONDA	42510SWA00*

品牌	号码
HONDA	42510SWAA0*
HONDA	42510SWAA0*
HONDA	42510SWAA0*
HONDA	42510SXSA0*
HONDA	42510T0AA0*

品牌	号码
HONDA	42510T0GA0*
HONDA	42510T0GA0*
ACURA (SEE HONDA)	42510TX4A0*
ACURA (SEE HONDA)	42510TX4A0*
HONDA	42510SA9E5*
