CENTRIC
12147043

第三方数据CENTRIC : 12147043

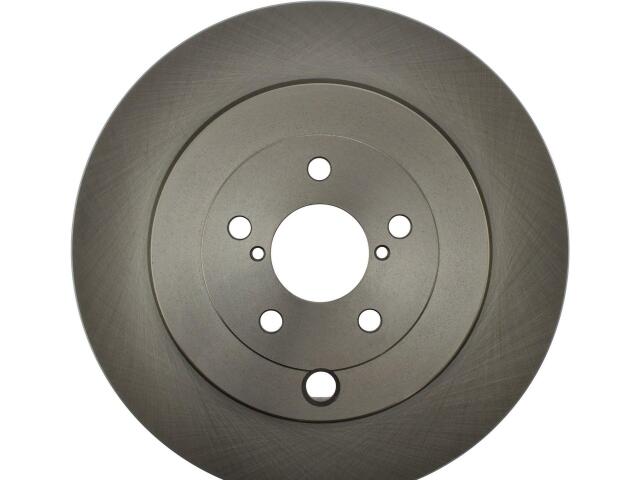

Rotor
CENTRIC : 12147043

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 3.937
Bolt Circle Diameter (MM): 100.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.709
Discard Thickness (MM): 18.000
Hat ID (IN): 7.335
Hat ID (MM): 186.300
Max PB Drum Dia (IN): 7.520
Max PB Drum Dia (MM): 191.000
Misc Holes: 3
Nominal Drum Diameter (IN): 7.472
Nominal Drum Diameter (MM): 189.800
Nominal Thickness (IN): 0.787
Nominal Thickness (MM): 20.000
OEM Vane Count: 93
Outside Diameter (IN): 12.441
Outside Diameter (MM): 316.000
Overall Height (IN): 2.500
Overall Height (MM): 63.500
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Pillar

适用车型

SUBARU (1)

TOYOTA (1)

参考号

厂商	号码
MIGHTY	85056*
O'REILLY/BRAKEBEST SELECT	922325RG*
PERFECT STOP HIGH CARBON	PS4422325H*

厂商	号码
QUALIS	4490*
ULTRA HC	UR00716*
ULTRAHC1000 BRAKE PADS	662232*

厂商	号码
WINHERE BRAKE PARTS INC.	662232*
WINHERE BRAKE PARTS INC.	UR00716*
WINSTOP BRAKE ROTORS AND DRUMS	WS25292*

OE号码

品牌	号码
OE	121.4704*
