CENTRIC
22734137R

第三方数据CENTRIC : 22734137R

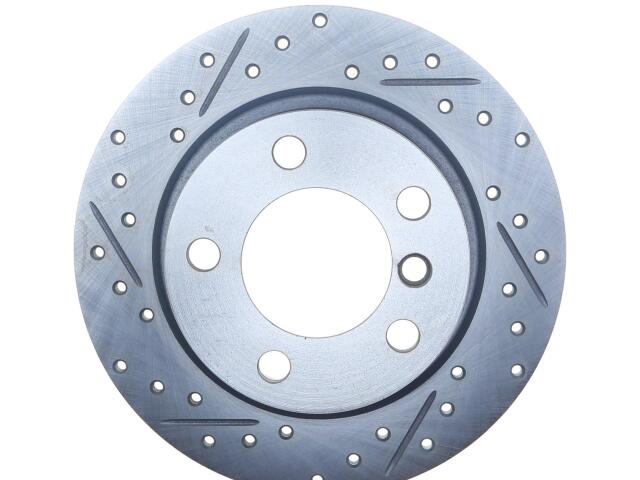

Rotor
CENTRIC : 22734137R

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.110
Center Hole Diameter (MM): 79.000
Disc Mounting: Floating
Discard Thickness (IN): 0.331
Discard Thickness (MM): 8.400
Hat ID in: 5.811
Hat ID mm: 147.600
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120.000
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10.000
Outside Diameter (IN): 11.012
Outside Diameter (MM): 279.700
Overall Height (IN): 1.976
Overall Height (MM): 50.200
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.654
Stud/Lug Hole Diameter (MM): 16.600
Stud/Lug Hole Quantity: 5
Surface Type: Slotted X Drilled

适用车型

MINI (2)

OE号码

品牌	号码
OE	227.34137*
