CENTRIC
22740053R

第三方数据CENTRIC : 22740053R

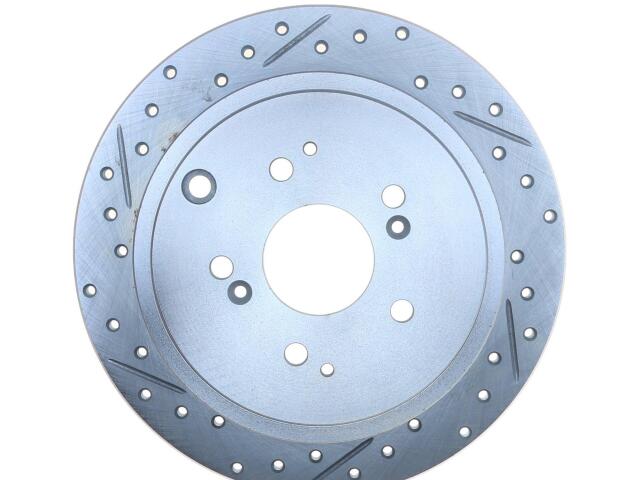

Rotor
CENTRIC : 22740053R

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.524
Center Hole Diameter (MM): 64.100
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.374
Discard Thickness (MM): 9.500
Max PB Drum Dia in: 8.307
Max PB Drum Dia mm: 211.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Drum Diameter (IN): 8.268
Nominal Drum Diameter (MM): 210.000
Nominal Thickness (IN): 0.437
Nominal Thickness (MM): 11.100
Outside Diameter (IN): 12.323
Outside Diameter (MM): 313.000
Overall Height (IN): 2.197
Overall Height (MM): 55.800
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.496
Stud/Lug Hole Diameter (MM): 12.600
Stud/Lug Hole Quantity: 5
Surface Type: Slotted X Drilled

适用车型

HONDA (1)

ACURA (1)

OE号码

品牌	号码
OE	227.40053*
