第三方数据CENTRIC : 22740071R

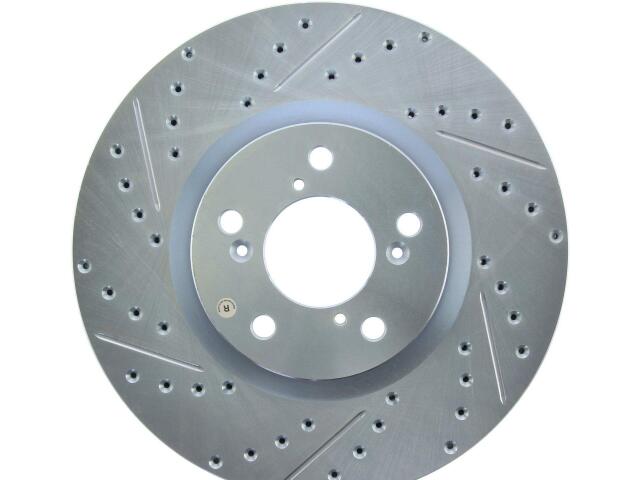

Rotor
CENTRIC : 22740071R

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.760
Center Hole Diameter (MM): 70.100
Disc Mounting: Floating
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26.000
Hat ID in: 6.016
Hat ID mm: 152.800
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120.000
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28.000
Outside Diameter (IN): 12.992
Outside Diameter (MM): 330.000
Overall Height (IN): 1.862
Overall Height (MM): 47.300
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.571
Stud/Lug Hole Diameter (MM): 14.500
Stud/Lug Hole Quantity: 5
Surface Type: Slotted X Drilled
Vane Style: Straight

适用车型

HONDA (1)

ACURA (3)

OE号码

品牌	号码
OE	227.40071*
