CENTRIC
22744079L

第三方数据CENTRIC : 22744079L

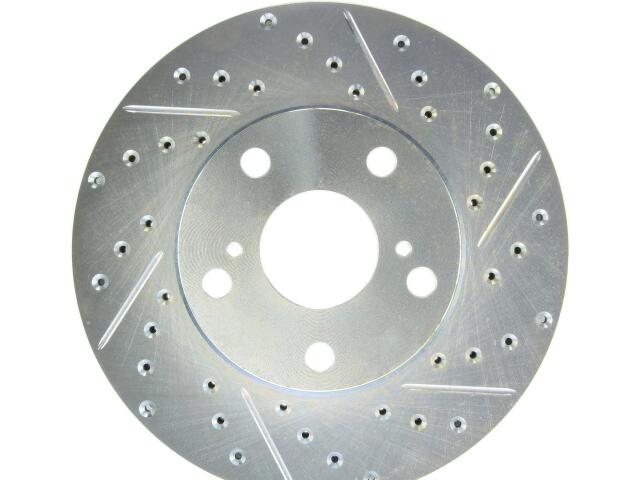

Rotor
CENTRIC : 22744079L

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.441
Center Hole Diameter (MM): 62.000
Disc Mounting: Floating
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28.000
Outside Diameter (IN): 10.827
Outside Diameter (MM): 275.000
Overall Height (IN): 1.937
Overall Height (MM): 49.200
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.581
Stud/Lug Hole Diameter (MM): 14.750
Stud/Lug Hole Quantity: 5
Surface Type: Slotted X Drilled
Vane Style: Straight

适用车型

TOYOTA (1)

OE号码

品牌	号码
OE	227-44079*
