CENTRIC
22744118R

第三方数据CENTRIC : 22744118R

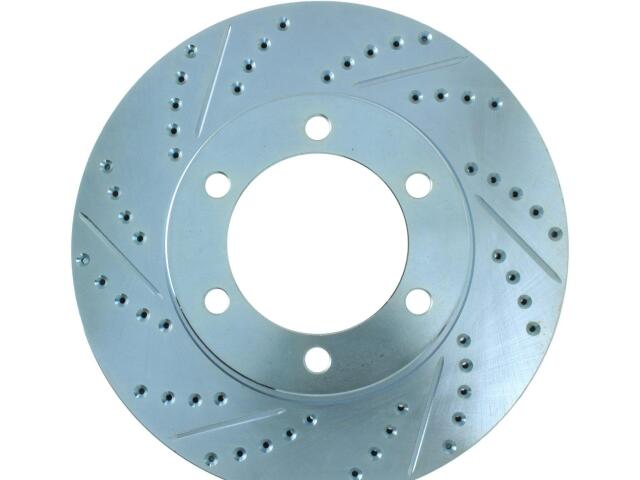

Rotor
CENTRIC : 22744118R

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 4.252
Center Hole Diameter (MM): 108.000
Disc Mounting: Floating
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26.000
Mounting Bolt Hole Circle Diameter (IN): 5.500
Mounting Bolt Hole Circle Diameter (MM): 139.700
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28.000
Outside Diameter (IN): 12.547
Outside Diameter (MM): 318.700
Overall Height (IN): 2.772
Overall Height (MM): 70.400
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.567
Stud/Lug Hole Diameter (MM): 14.400
Stud/Lug Hole Quantity: 6
Surface Type: Slotted X Drilled
Vane Style: Straight

适用车型

TOYOTA (2)

OE号码

品牌	号码
OE	227.44118*
