CENTRIC
22744119L

第三方数据CENTRIC : 22744119L

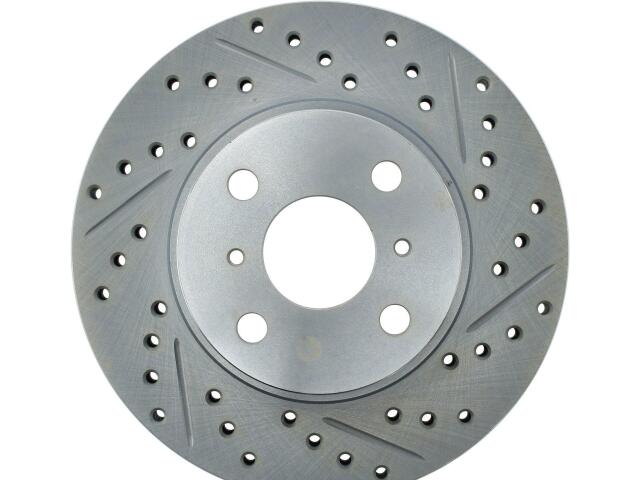

Rotor
CENTRIC : 22744119L

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.165
Center Hole Diameter (MM): 55.000
Disc Mounting: Floating
Discard Thickness (IN): 0.709
Discard Thickness (MM): 18.000
Mounting Bolt Hole Circle Diameter (IN): 3.937
Mounting Bolt Hole Circle Diameter (MM): 100.000
Nominal Thickness (IN): 0.787
Nominal Thickness (MM): 20.000
Outside Diameter (IN): 10.039
Outside Diameter (MM): 255.000
Overall Height (IN): 1.701
Overall Height (MM): 43.200
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.571
Stud/Lug Hole Diameter (MM): 14.500
Stud/Lug Hole Quantity: 4
Surface Type: Slotted X Drilled
Vane Style: Straight

适用车型

TOYOTA (3)

OE号码

品牌	号码
OE	227-44119*
