CENTRIC
22744157R

第三方数据CENTRIC : 22744157R

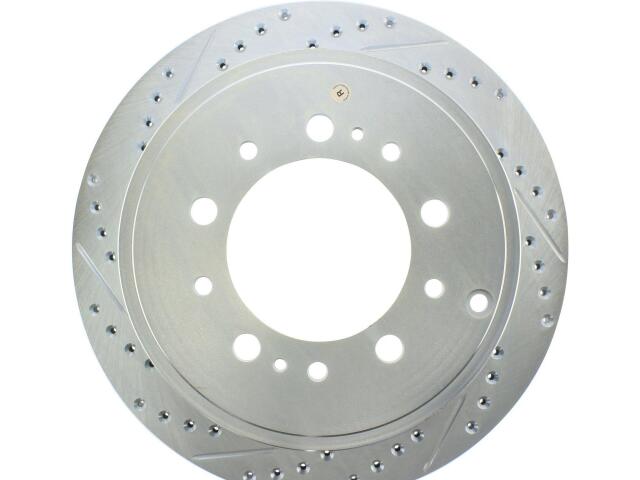

Rotor
CENTRIC : 22744157R

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 4.409
Center Hole Diameter (MM): 112.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.630
Discard Thickness (MM): 16.000
Mounting Bolt Hole Circle Diameter (IN): 5.906
Mounting Bolt Hole Circle Diameter (MM): 150.000
Nominal Thickness (IN): 0.709
Nominal Thickness (MM): 18.000
Outside Diameter (IN): 13.583
Outside Diameter (MM): 345.000
Overall Height (IN): 2.992
Overall Height (MM): 76.000
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.642
Stud/Lug Hole Diameter (MM): 16.300
Stud/Lug Hole Quantity: 5
Surface Type: Slotted X Drilled
Vane Style: Straight

适用车型

LEXUS (1)

TOYOTA (3)

TUNDRA (4)

4.0L V6 (8)

4.6L V8 (8)

4.7L V8 (3)

5.7L V8 (11)

SEQUOIA (3)

LAND CRUISER (1)

OE号码

品牌	号码
OE	227.44157*
