CENTRIC
22765090R

第三方数据CENTRIC : 22765090R

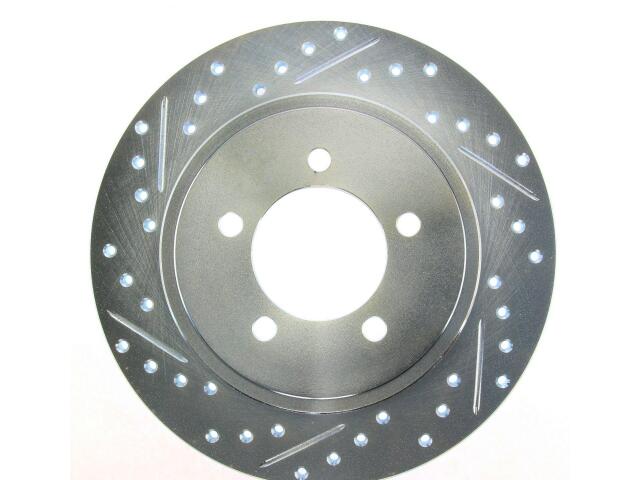

Rotor
CENTRIC : 22765090R

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.228
Center Hole Diameter (MM): 82.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.433
Discard Thickness (MM): 11.000
Max PB Drum Dia in: 7.272
Max PB Drum Dia mm: 184.700
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Drum Diameter (IN): 7.244
Nominal Drum Diameter (MM): 184.000
Nominal Thickness (IN): 0.476
Nominal Thickness (MM): 12.100
Outside Diameter (IN): 11.850
Outside Diameter (MM): 301.000
Overall Height (IN): 2.291
Overall Height (MM): 58.200
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.539
Stud/Lug Hole Diameter (MM): 13.700
Stud/Lug Hole Quantity: 5
Surface Type: Slotted X Drilled

适用车型

FORD (2)

EXPLORER (2)

EXPLORER SPORT TRAC (2)

MERCURY (1)

OE号码

品牌	号码
OE	227.65090*
