CENTRIC
32040085F

第三方数据CENTRIC : 32040085F

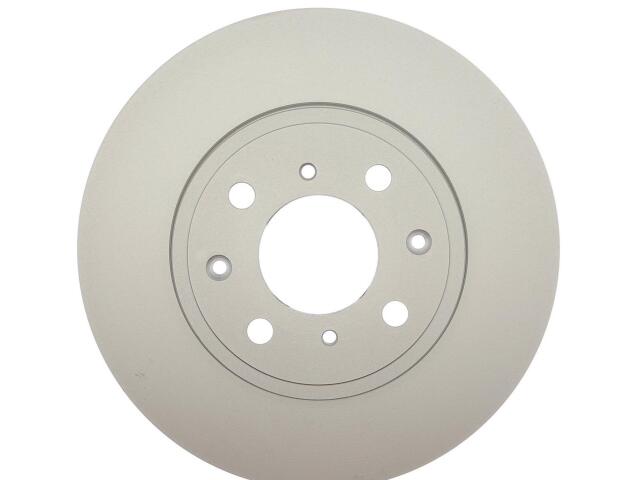

Rotor
CENTRIC : 32040085F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 3.937
Bolt Circle Diameter (MM): 100.000
Disc Finish: Fully Coated
Disc Mounting: Floating
Discard Thickness (IN): 0.748
Discard Thickness (MM): 19.000
Hat Finish: Coated
Hat ID (IN): 5.575
Hat ID (MM): 141.600
Misc Holes: 4
Nominal Thickness (IN): 0.827
Nominal Thickness (MM): 21.000
OEM Vane Count: 36
Outside Diameter (IN): 10.315
Outside Diameter (MM): 262.000
Overall Height (IN): 1.756
Overall Height (MM): 44.600
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Straight

适用车型

HONDA (1)

参考号

厂商	号码
MAGMA BRAKES	PSR26307*

OE号码

品牌	号码
OE	320-40085*
