DURAGO
BR31271

第三方数据DURAGO : BR31271

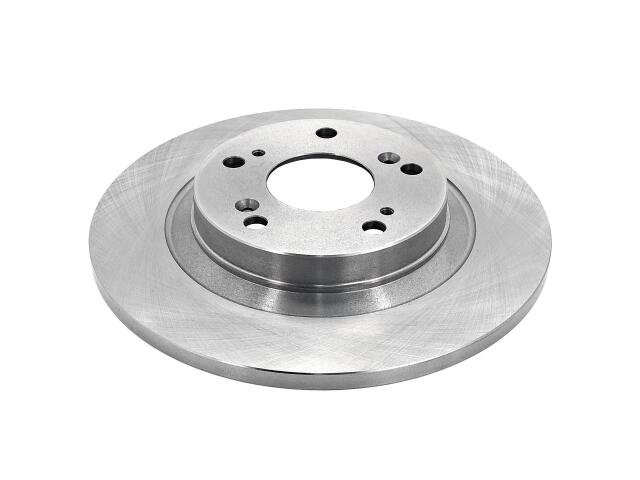

Rotor
DURAGO : BR31271

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.53
Center Hole Diameter (MM): 64.2
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.39
Discard Thickness (MM): 10
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.5
Mounting Bolt Hole Diameter (MM): 12.8
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 12
Outside Diameter (IN): 11.08
Outside Diameter (MM): 281.5
Overall Height (IN): 1.56
Overall Height (MM): 39.6
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

HONDA (1)

OE号码

品牌	号码
OE	AX3127*

品牌	号码
OE	12620*
