DURAGO
BR3129402

第三方数据DURAGO : BR3129402

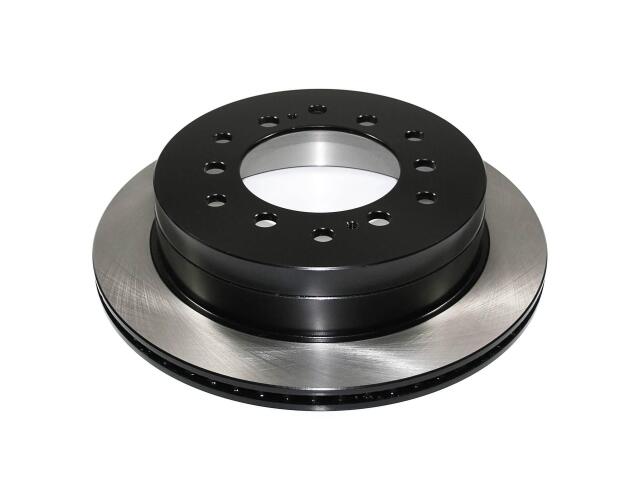

Rotor
DURAGO : BR3129402

Abs Tone Ring Included: No
Center Hole Diameter (IN): 4.17
Center Hole Diameter (MM): 106
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.63
Discard Thickness (MM): 16
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.5
Mounting Bolt Hole Circle Diameter (MM): 139.7
Mounting Bolt Hole Diameter (IN): 0.57
Mounting Bolt Hole Diameter (MM): 14.4
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 0.71
Nominal Thickness (MM): 18
Outside Diameter (IN): 12.28
Outside Diameter (MM): 312
Overall Height (IN): 2.68
Overall Height (MM): 68.1
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

LEXUS (1)

TOYOTA (3)

OE号码

品牌	号码
OE	BR31294-0*
