DURAGO
BR31315

第三方数据DURAGO : BR31315

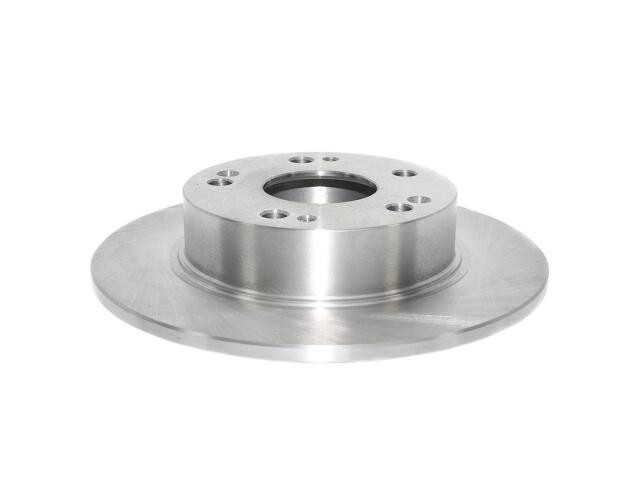

Rotor
DURAGO : BR31315

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.53
Center Hole Diameter (MM): 64.2
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.31
Discard Thickness (MM): 8
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.52
Mounting Bolt Hole Diameter (MM): 13.1
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.35
Nominal Thickness (MM): 9
Outside Diameter (IN): 10.24
Outside Diameter (MM): 260
Overall Height (IN): 1.92
Overall Height (MM): 48.7
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

HONDA (1)

ACURA (1)

OE号码

品牌	号码
OE	AX3131*

品牌	号码
OE	12608*
