DURAGO
BR900396

第三方数据DURAGO : BR900396

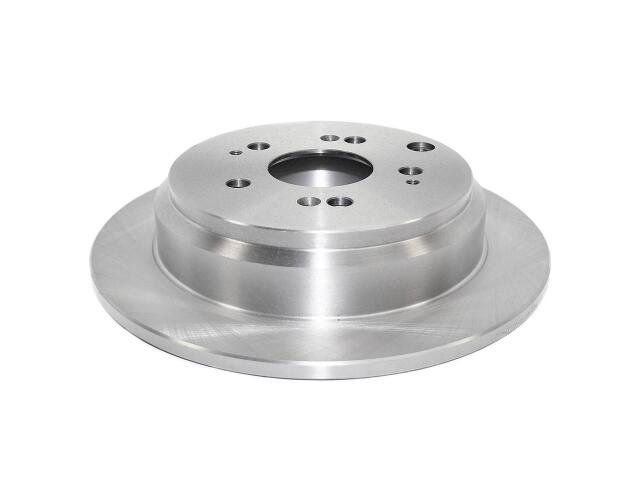

Rotor
DURAGO : BR900396

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.76
Center Hole Diameter (MM): 70
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.35
Discard Thickness (MM): 9
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.58
Mounting Bolt Hole Diameter (MM): 14.7
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.43
Nominal Thickness (MM): 11
Outside Diameter (IN): 12.31
Outside Diameter (MM): 312.6
Overall Height (IN): 2.5
Overall Height (MM): 63.5
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

HONDA (1)

OE号码

品牌	号码
OE	AX90039*

品牌	号码
OE	12635*
