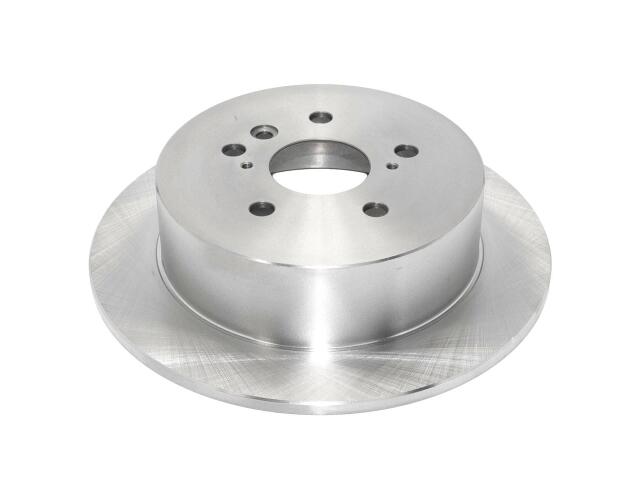

Rotor
DURAGO : BR900760

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.44
Center Hole Diameter (MM): 62
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.31
Discard Thickness (MM): 8
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.57
Mounting Bolt Hole Diameter (MM): 14.5
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 10
Outside Diameter (IN): 11.73
Outside Diameter (MM): 298
Overall Height (IN): 2.74
Overall Height (MM): 69.6
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

TOYOTA (1)

OE号码

品牌	号码
OE	AX90076*

品牌	号码
OE	44645G:*

品牌	号码
OE	90076*
