DURAGO
BR901192

第三方数据DURAGO : BR901192

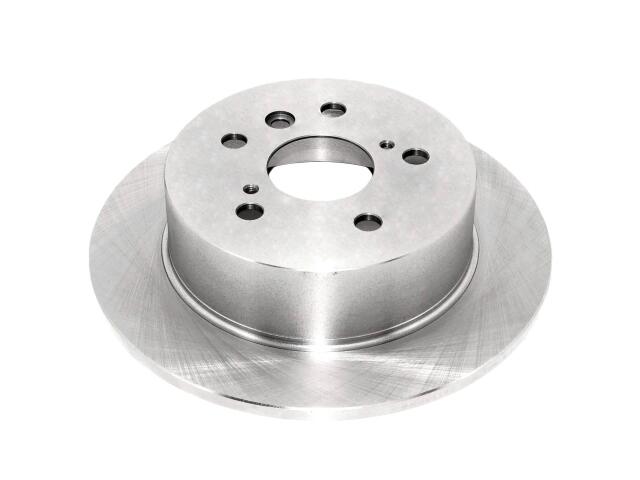

Rotor
DURAGO : BR901192

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.44
Center Hole Diameter (MM): 62
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.33
Discard Thickness (MM): 8.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.58
Mounting Bolt Hole Diameter (MM): 14.8
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 10
Outside Diameter (IN): 11.06
Outside Diameter (MM): 281
Overall Height (IN): 2.63
Overall Height (MM): 66.7
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

LEXUS (2)

TOYOTA (2)

CAMRY (3)

AVALON (2)

OE号码

品牌	号码
OE	44749*

品牌	号码
OE	90119*

品牌	号码
OE	AX90119*
