DURAGO
BR901418

第三方数据DURAGO : BR901418

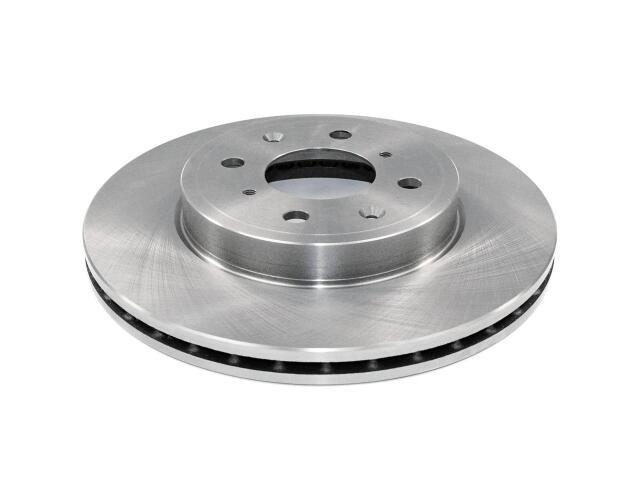

Rotor
DURAGO : BR901418

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.4
Center Hole Diameter (MM): 61
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.75
Discard Thickness (MM): 19
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100
Mounting Bolt Hole Diameter (IN): 0.5
Mounting Bolt Hole Diameter (MM): 12.8
Mounting Bolt Hole Quantity: 4
Nominal Thickness (IN): 0.83
Nominal Thickness (MM): 21
Outside Diameter (IN): 10.31
Outside Diameter (MM): 262
Overall Height (IN): 1.75
Overall Height (MM): 44.5
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

HONDA (1)

OE号码

品牌	号码
OE	AX90141*

品牌	号码
OE	45251T5RA0*
