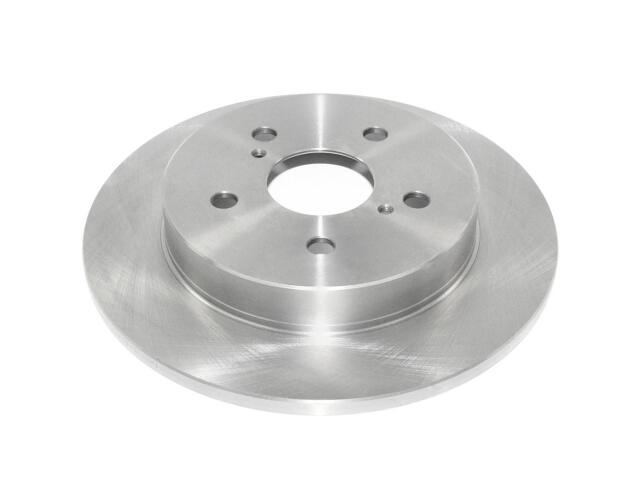

Rotor
DURAGO : BR901454

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.44
Center Hole Diameter (MM): 62
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.41
Discard Thickness (MM): 10.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.57
Mounting Bolt Hole Diameter (MM): 14.5
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 12
Outside Diameter (IN): 11.06
Outside Diameter (MM): 281
Overall Height (IN): 1.74
Overall Height (MM): 44.2
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

LEXUS (7)

UX200 (1)

UX250H (1)

NX200T (1)

NX300 (1)

ES300H (1)

NX300H (1)

ES350 (1)

TOYOTA (4)

OE号码

品牌	号码
OE	901454G:*

品牌	号码
OE	AX90145*

品牌	号码
OE	424317801*
