DURAGO
BR901592

第三方数据DURAGO : BR901592

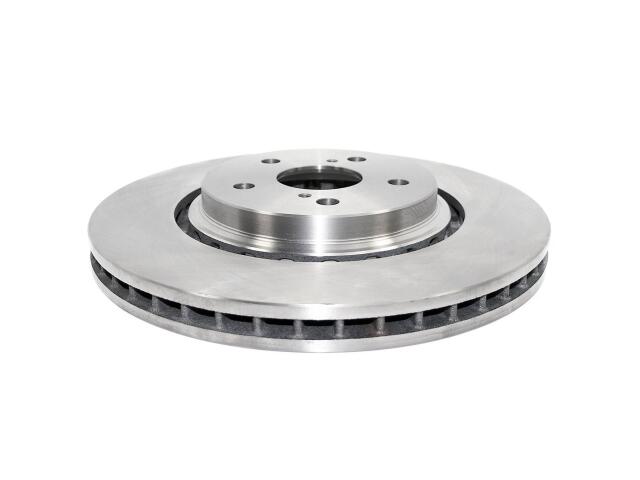

Rotor
DURAGO : BR901592

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.44
Center Hole Diameter (MM): 62
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.98
Discard Thickness (MM): 25
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.57
Mounting Bolt Hole Diameter (MM): 14.5
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.1
Nominal Thickness (MM): 28
Outside Diameter (IN): 12.91
Outside Diameter (MM): 328
Overall Height (IN): 1.94
Overall Height (MM): 49.4
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

LEXUS (6)

NX350 (1)

NX250 (1)

NX350H (1)

RX350 (1)

RX450H (1)

RX450HL (1)

TOYOTA (3)

OE号码

品牌	号码
OE	AX90159*

品牌	号码
OE	435120E05*

品牌	号码
OE	435124813*
