FVP
12140083

第三方数据FVP : 12140083

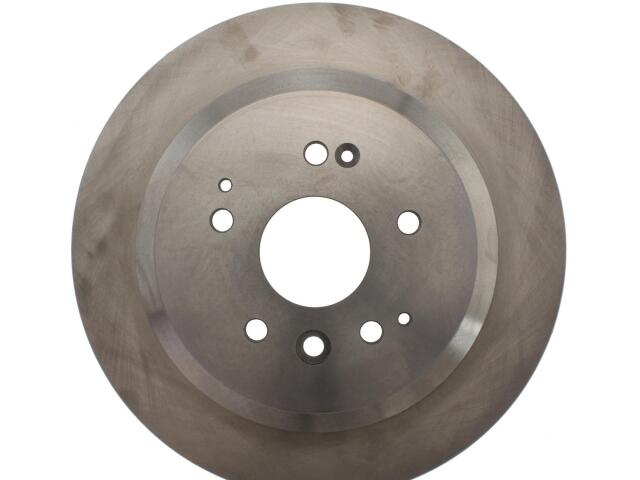

Rotor
FVP : 12140083

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.524
Center Hole Diameter (MM): 64.100
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.354
Discard Thickness (MM): 9.000
Hat ID in: 6.941
Hat ID mm: 176.300
Max PB Drum Dia in: 8.307
Max PB Drum Dia mm: 211.000
Mounting Bolt Hole Circle Diameter (IN): 4.496
Mounting Bolt Hole Circle Diameter (MM): 114.200
Nominal Drum Diameter (IN): 8.260
Nominal Drum Diameter (MM): 209.800
Nominal Thickness (IN): 0.433
Nominal Thickness (MM): 11.000
Outside Diameter (IN): 11.803
Outside Diameter (MM): 299.800
Overall Height (IN): 2.492
Overall Height (MM): 63.300
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.496
Stud/Lug Hole Diameter (MM): 12.600
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

ACURA (1)

OE号码

品牌	号码
OE	121-4008*
