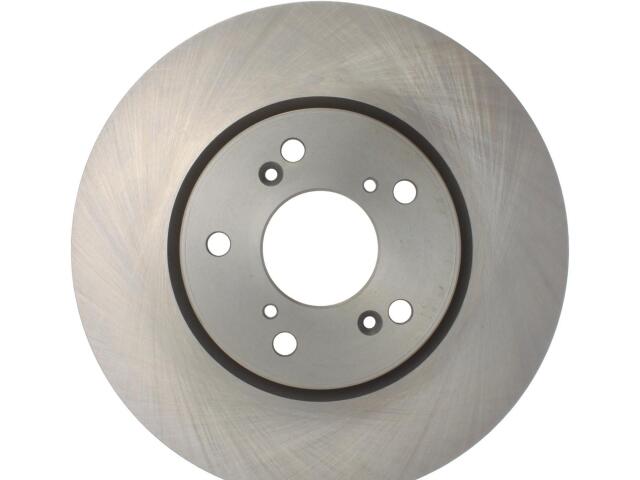

Rotor
FVP : 12140084

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.524
Center Hole Diameter (MM): 64.100
Disc Mounting: Floating
Discard Thickness (IN): 0.906
Discard Thickness (MM): 23.000
Hat ID in: 5.811
Hat ID mm: 147.600
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 0.984
Nominal Thickness (MM): 25.000
Outside Diameter (IN): 11.535
Outside Diameter (MM): 293.000
Overall Height (IN): 1.866
Overall Height (MM): 47.400
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.500
Stud/Lug Hole Diameter (MM): 12.700
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

HONDA (2)

OE号码

品牌	号码
OE	121-4008*
