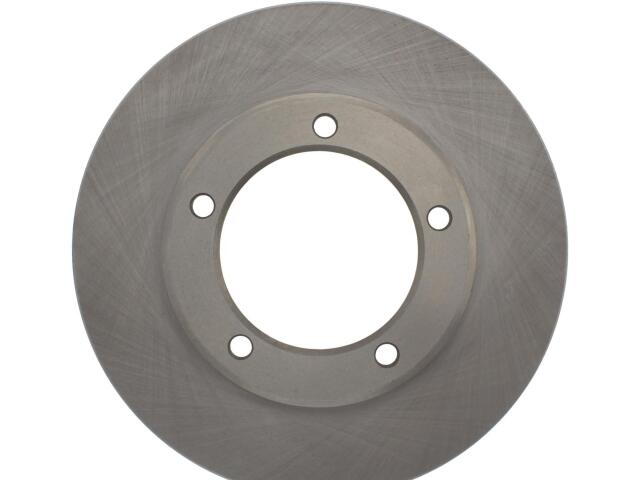

Rotor
FVP : 12144086

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 4.531
Center Hole Diameter (MM): 115.100
Disc Mounting: Behind the Hub
Discard Thickness (IN): 1.181
Discard Thickness (MM): 30.000
Mounting Bolt Hole Circle Diameter (IN): 5.669
Mounting Bolt Hole Circle Diameter (MM): 144.000
Mounting Bolt Hole Diameter (IN): 0.496
Mounting Bolt Hole Diameter (MM): 12.600
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.260
Nominal Thickness (MM): 32.000
Outside Diameter (IN): 12.323
Outside Diameter (MM): 313.000
Overall Height (IN): 2.744
Overall Height (MM): 69.700
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Straight

适用车型

LEXUS (1)

TOYOTA (1)

OE号码

品牌	号码
OE	121-4408*
