第三方数据FVP : 12144088

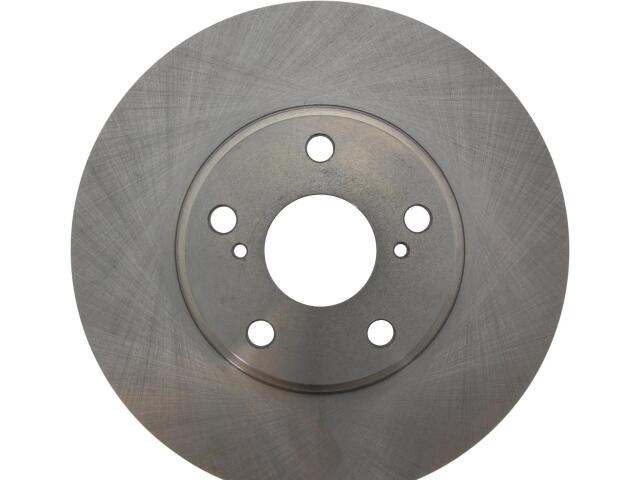

Rotor
FVP : 12144088

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.441
Center Hole Diameter (MM): 62.000
Disc Mounting: Floating
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28.000
Outside Diameter (IN): 11.654
Outside Diameter (MM): 296.000
Overall Height (IN): 1.937
Overall Height (MM): 49.200
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.571
Stud/Lug Hole Diameter (MM): 14.500
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

LEXUS (1)

TOYOTA (1)
