第三方数据FVP : 12144114

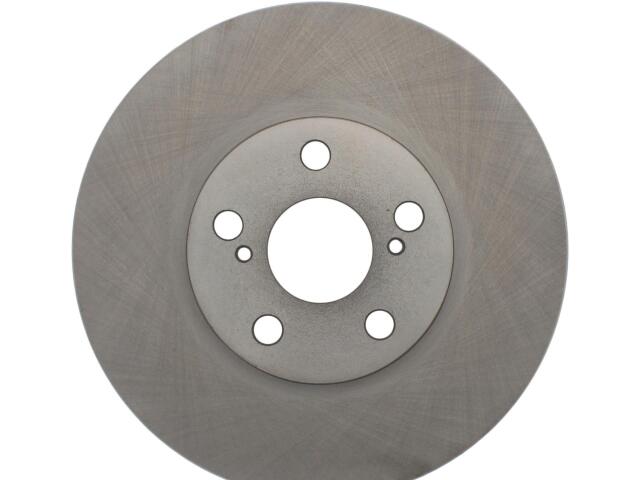

Rotor
FVP : 12144114

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.169
Center Hole Diameter (MM): 55.100
Disc Mounting: Floating
Discard Thickness (IN): 0.906
Discard Thickness (MM): 23.000
Mounting Bolt Hole Circle Diameter (IN): 3.937
Mounting Bolt Hole Circle Diameter (MM): 100.000
Nominal Thickness (IN): 0.984
Nominal Thickness (MM): 25.000
Outside Diameter (IN): 10.827
Outside Diameter (MM): 275.000
Overall Height (IN): 1.941
Overall Height (MM): 49.300
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.571
Stud/Lug Hole Diameter (MM): 14.500
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

TOYOTA (3)

PONTIAC (1)

SCION (1)
