FVP
12162058

第三方数据FVP : 12162058

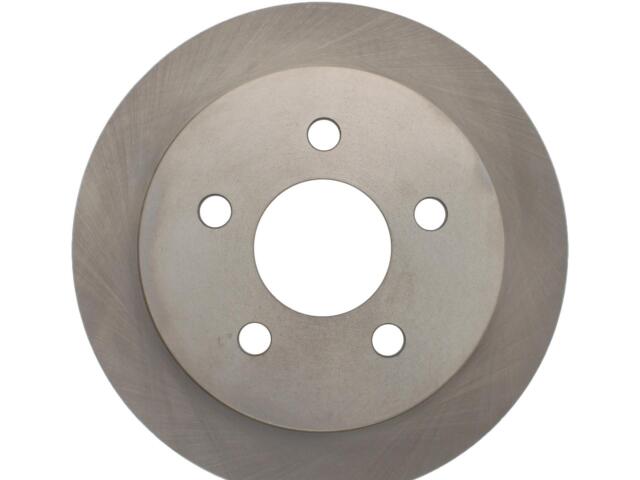

Rotor
FVP : 12162058

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.780
Center Hole Diameter (MM): 70.600
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.354
Discard Thickness (MM): 9.000
Max PB Drum Dia in: 6.949
Max PB Drum Dia mm: 176.500
Mounting Bolt Hole Circle Diameter (IN): 4.646
Mounting Bolt Hole Circle Diameter (MM): 118.000
Nominal Drum Diameter (IN): 6.906
Nominal Drum Diameter (MM): 175.400
Nominal Thickness (IN): 0.435
Nominal Thickness (MM): 11.040
Outside Diameter (IN): 10.945
Outside Diameter (MM): 278.000
Overall Height (IN): 1.988
Overall Height (MM): 50.500
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.642
Stud/Lug Hole Diameter (MM): 16.300
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

BUICK (1)

CHEVROLET (2)

PONTIAC (1)

OE号码

品牌	号码
OE	121-6205*
