第三方数据FVP : 12162113

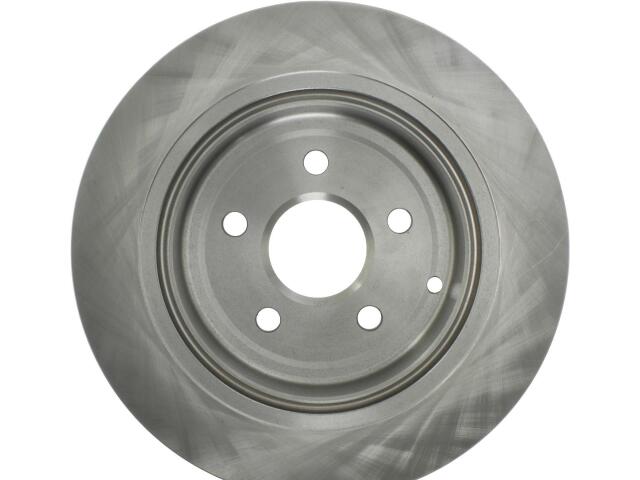

Rotor
FVP : 12162113

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.654
Center Hole Diameter (MM): 67.400
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.787
Discard Thickness (MM): 20.000
Hat ID in: 6.165
Hat ID mm: 156.600
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120.000
Nominal Drum Diameter (IN): 7.480
Nominal Drum Diameter (MM): 190.000
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22.000
Outside Diameter (IN): 12.764
Outside Diameter (MM): 324.200
Overall Height (IN): 2.197
Overall Height (MM): 55.800
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.638
Stud/Lug Hole Diameter (MM): 16.200
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Curved

适用车型

CHEVROLET (2)

PONTIAC (1)

OE号码

品牌	号码
OE	121-6211*
