POWER STOP
JBR1153EVC

第三方数据POWER STOP : JBR1153EVC

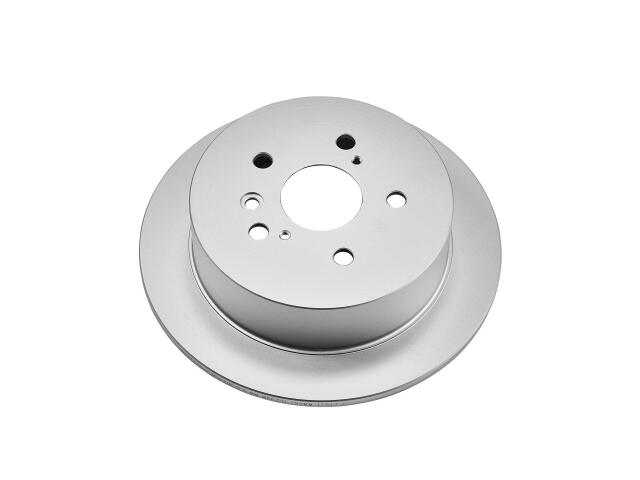

Rotor
POWER STOP : JBR1153EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.33
Discard Thickness (MM): 8.50
Mounting Bolt Hole Circle Diameter (IN): 4.50
Mounting Bolt Hole Circle Diameter (MM): 114.30
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 9.90
Outside Diameter (IN): 11.34
Outside Diameter (MM): 288.00
Overall Height (IN): 2.74
Overall Height (MM): 69.50
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

LEXUS (3)

TOYOTA (1)
