POWER STOP
JBR1311EVC

第三方数据POWER STOP : JBR1311EVC

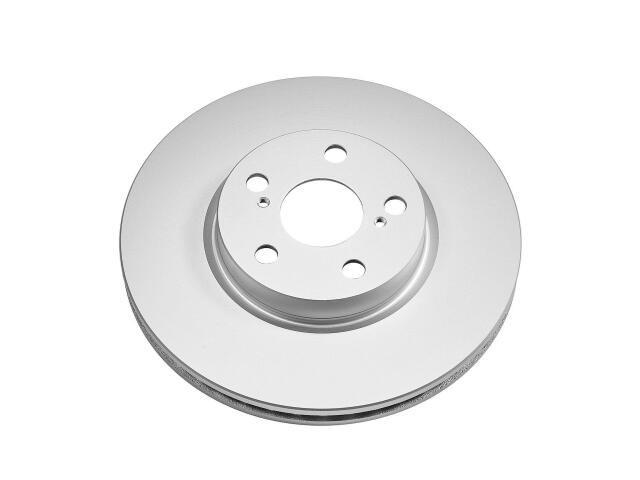

Rotor
POWER STOP : JBR1311EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.75
Discard Thickness (MM): 19.00
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100.00
Nominal Thickness (IN): 0.87
Nominal Thickness (MM): 22.00
Outside Diameter (IN): 10.83
Outside Diameter (MM): 275.00
Overall Height (IN): 1.83
Overall Height (MM): 46.50
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

TOYOTA (2)

COROLLA (2)

MATRIX (1)

PONTIAC (1)

SCION (1)
