POWER STOP
JBR712EVC

第三方数据POWER STOP : JBR712EVC

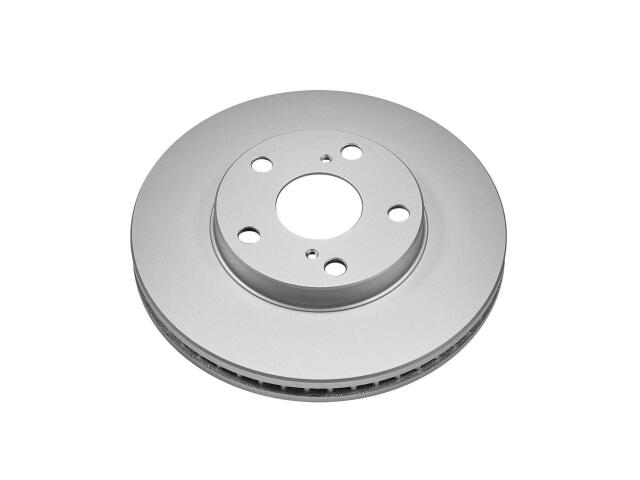

Rotor
POWER STOP : JBR712EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 1.02
Discard Thickness (MM): 26.00
Mounting Bolt Hole Circle Diameter (IN): 4.50
Mounting Bolt Hole Circle Diameter (MM): 114.30
Nominal Thickness (IN): 1.10
Nominal Thickness (MM): 28.00
Outside Diameter (IN): 10.81
Outside Diameter (MM): 274.50
Overall Height (IN): 1.95
Overall Height (MM): 49.60
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

TOYOTA (1)
