POWER STOP
JBR736XPR

第三方数据POWER STOP : JBR736XPR

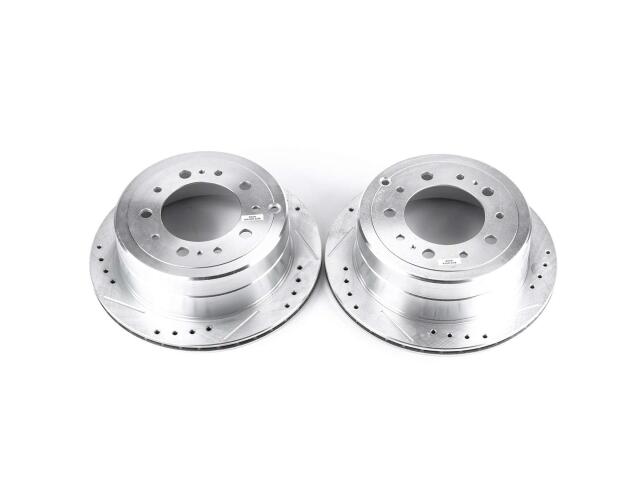

Rotor
POWER STOP : JBR736XPR

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.63
Discard Thickness (MM): 16.00
Mounting Bolt Hole Circle Diameter (IN): 5.91
Mounting Bolt Hole Circle Diameter (MM): 150.00
Nominal Thickness (IN): 0.70
Nominal Thickness (MM): 17.90
Outside Diameter (IN): 12.95
Outside Diameter (MM): 329.00
Overall Height (IN): 4.05
Overall Height (MM): 102.80
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Drilled & Slotted

适用车型

LEXUS (1)

TOYOTA (1)
