POWER STOP
JBR737EVC

第三方数据POWER STOP : JBR737EVC

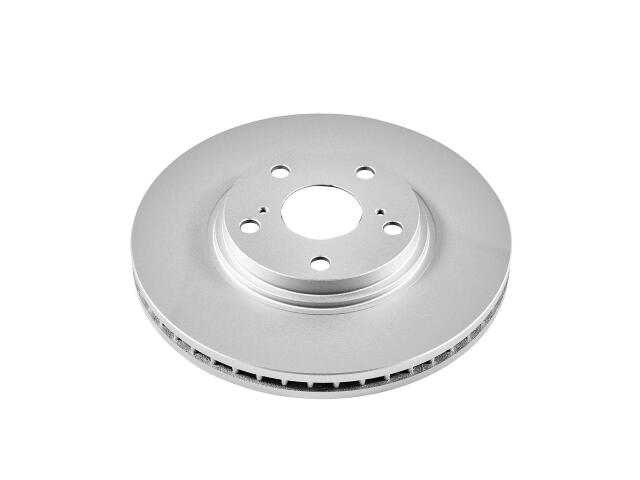

Rotor
POWER STOP : JBR737EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 1.02
Discard Thickness (MM): 26.00
Mounting Bolt Hole Circle Diameter (IN): 4.50
Mounting Bolt Hole Circle Diameter (MM): 114.30
Nominal Thickness (IN): 1.10
Nominal Thickness (MM): 27.90
Outside Diameter (IN): 11.65
Outside Diameter (MM): 296.00
Overall Height (IN): 1.95
Overall Height (MM): 49.50
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

LEXUS (1)

TOYOTA (1)
