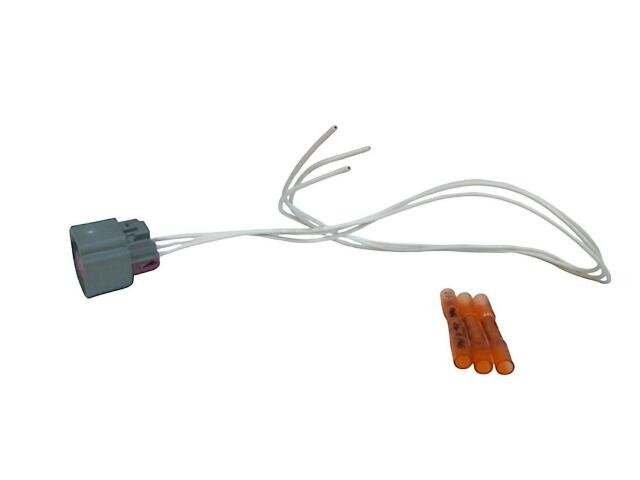

Turn Signal Switch Connector
BWD/NIEHOFF : PT906

Attachment Method: Push on
Connector Gender: Male
Connector Quantity: 1
Connector Shape: Oval
Contact Terminal Material: Metal
Contents: Includes Butt Splices
Dust Shield Included: No
Harness Length - Inches: 16"
Length - Inches: 1.125
Material: Plastic
Number Of Splice Connectors Includ: 3
Number of Wires: 3
Splice Connectors Included: Yes
Terminal Gender: Female
Terminal Quantity: 3
Terminal Type: Blade
Water Resistant: Yes
Weatherproof Sealed: Yes
Wire Gauge (ga): 20
Wire Quantity: 3
Wiring Harness Included: Yes
Wiring Harness Length (IN): 17.25
Wiring Harness Length (MM): 438.15

适用车型

BUICK (1)

CHEVROLET (2)

GMC (1)
